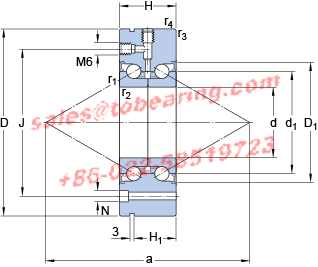

d - 60 mm

D - 145 mm

H - 45 mm

d₁ - 85 mm

D₁ - 100 mm

H₁ - 35 mm

r_1,2 - min. - 0.6 mm

r_3,4 - min. - 0.6 mm

a - 168 mm

J - 120 mm

H - 8.8 mm

d_a - min. - 82 mm

D_a - max. - 100 mm

r_a - max. - 0.6 mm

Basic dynamic load rating - C - 85 kN

Basic static load rating - C₀ - 216 kN

Fatigue load limit - P_u - 8 kN

Limiting speed - 2600 r/min

Preload - 4700 N

Frictional moment - 1 N·m

Static Axial rigidity - 1400 N/micron

Mass bearing - 4.3 kg

Required attachment bolt size - M8

Number of attachment bolts - 8

• Model Number: BEAM 060145-2RZ
• Inner Diameter：60mm Outer Diameter：145mm Width：45mm
• Type：Thrust Ball Bearings
• Update date：2025-04-22
• Application:printing equipment,atomizer class,baler,Storage Tool,meat products machine,Polymer,Reflective Materials Industrial fabrics,office outdoor camping equipment,medical treatment,coal,food safety
• Similar models:SKF BEAM060145-2RS SKF BEAM060145-2RZ
• BEARING POWER International Trading Co.,Ltd. specialize in BEAM060145-2RZ products，there is large inventory of SKF BEAM 060145-2RZ . We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAM 060145-2RZ Which SKF BEAM060145-2RZ is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
