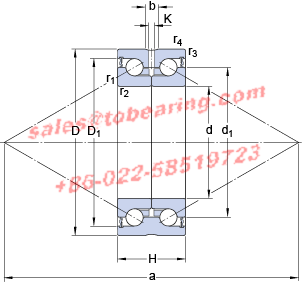

d - 15 mm

D - 45 mm

H - 25 mm

d₁ - 28 mm

D₁ - 36 mm

b - 3.1 mm

K - 2.5 mm

r_1,2 - min. - 0.3 mm

r_3,4 - min. - 0.6 mm

a - 61 mm

d_a - min. - 20 mm

D_a - max. - 35 mm

r_a - max. - 0.3 mm

r_b - max. - 0.6 mm

Basic dynamic load rating - C - 18 kN

Basic static load rating - C₀ - 28 kN

Fatigue load limit - P_u - 1 kN

Limiting speed - 3900 r/min

Preload - 650 N

Frictional moment - 0.2 N·m

Static Axial rigidity - 400 N/micron

Mass bearing - 0.21 kg

• Model Number: BEAS 015045-2RS
• Inner Diameter：15mm Outer Diameter：45mm Width：25mm
• Type：Thrust Ball Bearings
• Update date：2025-04-22
• Application:cleaning agent,machine lathe,Forging machine,Generator,plant determination,Other machinery,casting embedding,Industrial Electromechanical,coal,Small air generators,tooth filling
• Similar models:SKF BEAS015045-2RZ SKF BEAS015045-2RS
• BEARING POWER International Trading Co.,Ltd. specialize in BEAS015045-2RS products，there is large inventory of SKF BEAS 015045-2RS . We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAS 015045-2RS Which SKF BEAS015045-2RS is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.

• Model No.	Inner Diameter	Outer Diameter	Width	Brand	Type
  130KBE43+L	130	280	137	NSK	Tapered Roller Bearings
  20324	120	260	55	ISO	Spherical Roller Bearings
  23136CK	180	300	96	AST	Spherical Roller Bearings
  23972CC/W33	360	480	90	SKF	Spherical Roller Bearings
  608/500	500	620	37	ISB	Deep Groove Ball Bearings
  CLB30UU	30	40		Samick	Linear Bearings
  FL617/5	5	8	2	ISO	Deep Groove Ball Bearings
  QJ 324 N2MA	260	120	55	SKF	Angular Contact Ball Bearings
  W 61812-2Z	78	60	10	SKF	Deep Groove Ball Bearings
  SL184924	120	165	45	INA	CYLINDRICAL ROLLER BEARINGS
  KM1			4	FAG	LOCKNUTS
  LBE20AJ	20	32	45	IKO	LINEAR RECIRCULATING BALL BEARINGS
  KF070ARO	7.0000	8.5000	.7500	KAYDON	ANGULAR CONTACT BALL BEARINGS
  BU1328Z	140	300	62	Hyatt	CYLINDRICAL ROLLER BEARINGS
  LJ-7/8-2RS	.8750	2.0000	.5625	RHP	DEEP GROOVE BALL BEARINGS
  CS-48-LWX			.8750	RBC	NEEDLE BEARINGS
  FJ-2816	35		16	NSK	NEEDLE BEARINGS
  NBI405530	40	55	30	NADELLA	NEEDLE BEARINGS
  50BIC225	5.0000	7.0000	1.0000	Torrington	DEEP GROOVE BALL BEARINGS
  XLS-13/4	1.7500	3.0000	.5625	CONSOLIDATED	DEEP GROOVE BALL BEARINGS
