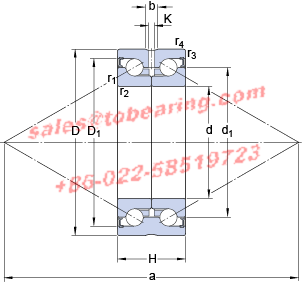

d - 8 mm

D - 32 mm

H - 20 mm

d₁ - 19 mm

D₁ - 26.5 mm

b - 3.1 mm

K - 1.2 mm

r_1,2 - min. - 0.3 mm

r_3,4 - min. - 0.6 mm

a - 43 mm

d_a - min. - 12 mm

D_a - max. - 26 mm

r_a - max. - 0.3 mm

r_b - max. - 0.6 mm

Basic dynamic load rating - C - 12.5 kN

Basic static load rating - C₀ - 16.3 kN

Fatigue load limit - P_u - 0.6 kN

Limiting speed - 8800 r/min

Preload - 300 N

Frictional moment - 0.04 N·m

Static Axial rigidity - 250 N/micron

Mass bearing - 0.09 kg

• Model Number: BEAS 008032-2RZ
• Inner Diameter：8mm Outer Diameter：32mm Width：20mm
• Type：Thrust Ball Bearings
• Update date：2025-04-22
• Application:textile machinery,wall materials,paper processing machine,education model Instruments,shaft milling machine,squeeze machine etc,industry test,security,other processing,paint paint,trolley
• Similar models:SKF BEAS008032-2RS SKF BEAS008032-2RZ
• BEARING POWER International Trading Co.,Ltd. specialize in BEAS008032-2RZ products，there is large inventory of SKF BEAS 008032-2RZ . We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAS 008032-2RZ Which SKF BEAS008032-2RZ is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
