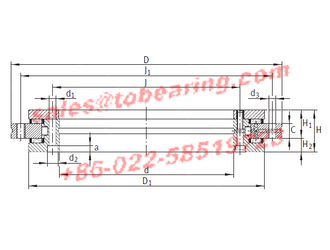

d - 100 mm

D - 185 mm

C - 12 mm

H - 38 mm

a - 5,4 mm

d1 - 5,6 mm

d2 - 10 mm

d3 - 5,6 mm

D1 - 161 mm

H1 - 25 mm

H2 - 13 mm

J - 112 mm

J1 - 170 mm

Weight - 4,1 Kg

Dynamic load rating radial (C) - 52 kN

Dynamic load rating axial (C) - 73 kN

Static load rating radial (C0) - 108 kN

Static load rating axial (C0) - 370 kN

Limiting speed - 280 r/min

• Model Number: YRT100
• Inner Diameter：100mm Outer Diameter：185mm Width：12mm
• Type：Complex Bearings
• Update date：2025-04-22
• Application:experimental equipment,air purification,Broadcasting System,pneumatic Pump,expectoration machine,medical treatment,other mold,Performance test,multi-knife lathe,small appliances,food sterilization
• Similar models:INA ZARF40100-TV INA YRT100 NBS ZARF40100LTN NBS ZARF40100TN INA RTC100 INA ZARF40100-L-TV
• BEARING POWER International Trading Co.,Ltd. specialize in YRT100 products，there is large inventory of INA YRT100 . We has been built up long-term cooperation with INA company, could make a bulk order of the YRT100 Which INA YRT100 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
