Bearing Insert No. | 477210-115 | SYH-..X | |

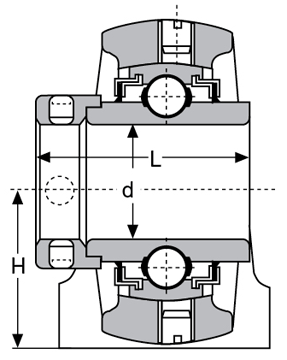

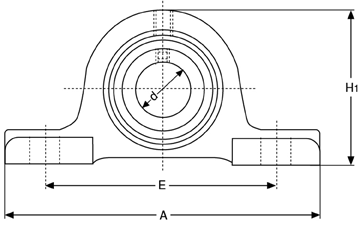

Dimensions (inch) | d | 1.9375 | |
A | 8.0000 | ||
E | 6.2500 | ||
L | 2.4687 | ||
H | 2.1875 | ||
H1 | 4.4375 | ||
Approx. Wgt. lbs | 6.930 | ||
Interchange | FAF | RAK 1 15/16 | |
IPTCI | NAPL 210-31 | ||
NTN | UELPL 210-115T | ||
Sealmaster | NPL-31 | ||
Sealmaster (Old No.) | S-531M | ||
SKF | SYH 1 15/16 WF | ||
1) Length dimension "L" may vary between manufacturers. 2) The Sealmaster series has set screw locking. |
Model No. | Inner Diameter | Outer Diameter | Width | Brand | Type |
23234 KCW33+H2334 | 170 | 310 | 110 | CX | Spherical Roller Bearings |
---|---|---|---|---|---|
231/710 | 710 | 1150 | 345 | ISB | Spherical Roller Bearings |
23964 CW33 | 320 | 440 | 90 | CX | Spherical Roller Bearings |
32912JR | 60 | 85 | 17 | KOYO | Tapered Roller Bearings |
45TAB07 | 45 | 75 | 15 | NACHI | Thrust Ball Bearings |
52320 | 85 | 170 | 97 | FAG | Thrust Ball Bearings |
61804ZZ | 20 | 32 | 7 | CRAFT | Deep Groove Ball Bearings |
71917 ACB/HCP4A | 120 | 85 | 18 | SKF | Angular Contact Ball Bearings |
GE 70GS | 70 | 120 | 70 | IKO | Plain Bearings |
LME5AJ | 5 | 12 | 14,5 | Samick | Linear Bearings |
PCZ 4848 E | 76,2 | 80,963 | 76,2 | SKF | Plain Bearings |
SL014848 | 240 | 300 | 60 | NBS | Cylindrical Roller Bearings |
T2ED080 | 80 | 145 | 46 | ISO | Tapered Roller Bearings |
VSA 25 0855 N | 755 | 997 | INA | Thrust Ball Bearings | |
22320EAS.MA.C4.T41A | 100 | 215 | 73 | FAG | SPHERICAL ROLLER BEARINGS |
7603065TVP | 65 | 140 | 33 | FAG | ANGULAR CONTACT BALL SCREW SUPPORT BEARINGS |
A1209TS | 45 | 85 | 19 | Hyatt | CYLINDRICAL ROLLER BEARINGS |
4407 | .8750 | 1.9375 | INA | THRUST BALL BEARINGS | |
KR-22-2RSX | 10 | 22 | 12 | CONSOLIDATED | NEEDLE BEARINGS |
WCT-27C | 5.9680 | 6.3750 | CONSOLIDATED | THRUST ROLLER BEARINGS |
