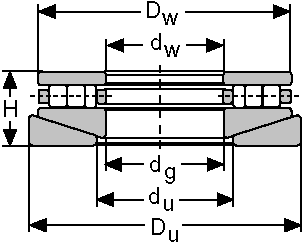

Dimensions (inch) | du | 1.8750 | |
Du | 3.1250 | ||
dw | 1.5625 | ||
dg | 1.6250 | ||
Dw | 2.9062 | ||
H | 1.0625 | ||
Approx. Wgt. lbs | 1.400 | ||
Interchange | American | - | |
Andrews | RTWM-610 | ||
INA | RTW-610 | ||
Rollway | AT-610 | ||
Torrington | - | ||
* These bearings are supplied as a complete unit. 1) This series is equipped with machined bronze cages. 2) O.D. dimension of shaft washer and bore dimension of housing washer may vary between manufacturers. 3) Smaller and larger sizes are available on special order. |
Model No. | Inner Diameter | Outer Diameter | Width | Brand | Type |
22332R | 160 | 340 | 114 | KOYO | Spherical Roller Bearings |
---|---|---|---|---|---|
24036 CC/W33 | 280 | 180 | 100 | SKF | Spherical Roller Bearings |
7038 A-UD | 190 | 290 | 92 | CX | Angular Contact Ball Bearings |
52211 | 57 | 90 | 45 | ISO | Thrust Ball Bearings |
6009L11 | 45 | 75 | 16 | NSK | Deep Groove Ball Bearings |
628 | 8 | 24 | 8 | KOYO | Deep Groove Ball Bearings |
BF12040 | INA | Needle Roller Bearings | |||
BK0812 | 8 | 12 | 12 | ISO | Cylindrical Roller Bearings |
KHPFL201A | 12 | NACHI | Bearing Units | ||
LD5700ZZ | 10 | 32 | 14,3 | AST | Deep Groove Ball Bearings |
M-1071 | 15,875 | 20,638 | 11,13 | NSK | Needle Roller Bearings |
N207 | 35 | 72 | 17 | CRAFT | Cylindrical Roller Bearings |
NAO90X120X30 | 90 | 120 | 30 | INA | Needle Roller Bearings |
UC206-19L2 | 30,1625 | 62 | 38,1 | KOYO | Deep Groove Ball Bearings |
UKC328H | 125 | 131 | SNR | Bearing Units | |
UKFS326 | 115 | KOYO | Bearing Units | ||
NF214 | 70 | 125 | 24 | FAG | CYLINDRICAL ROLLER BEARINGS |
SN309with22309 | 45 | - | 70 | FAG | PILLOW BLOCKS |
NK-14/16 | 22 | 16 | CONSOLIDATED | NEEDLE BEARINGS | |
NK-40/30 | 50 | 30 | CONSOLIDATED | NEEDLE BEARINGS |
