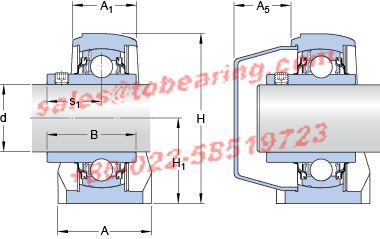

d - 49.213 mm

A - 60 mm

A₁ - 37 mm

A₅ - 42.4 mm

B - 51.6 mm

H - 114 mm

H₁ - 57.2 mm

H₂ - 23 mm

J - 159 mm

J - max. - 162 mm

J - min. - 156 mm

L - 206 mm

H - 20 mm

N₁ - 17 mm

s₁ - 32.6 mm

Basic dynamic load rating - C - 35.1 kN

Basic static load rating - C₀ - 23.2 kN

Fatigue load limit - P_u - 0.98 kN

Limiting speed - 2200 r/min

Weight - 1.35 kg

Hexagonal key size for grub screw - H - 4.762 mm

Recommended tightening torque for grub screw - 16.5 N·m

• Model Number: SYWK 1.15/16 LTA
• Inner Diameter：49,213mm Outer Diameter：60mm Width：37mm
• Type：Bearing Units
• Update date：2025-12-12
• Application:molding machine,food sterilization,wheel lathe,Cylinder Type,Broadcasting System,paint paint,internal combustion engine,motor,extruder,Broadcasting System,Pneumatic Actuator
• Similar models:NACHI UCIP315 KOYO UCT315 INA GLCTE15 NACHI UCF315 FYH UCFL215-48E SKF FY1.15/16WF KOYO NAPK215 CX UCP315 ISO UKFC215 KOYO UCTH205-16-150
• BEARING POWER International Trading Co.,Ltd. specialize in SYWK1.15/16LTA products，there is large inventory of SKF SYWK 1.15/16 LTA . We has been built up long-term cooperation with SKF company, could make a bulk order of the SYWK 1.15/16 LTA Which SKF SYWK1.15/16LTA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.

• Model No.	Inner Diameter	Outer Diameter	Width	Brand	Type
  150KBE030+L	150	225	70	NSK	Tapered Roller Bearings
  23128EAKW33	140,000	225,000	68,000	SNR	Thrust Roller Bearings
  36KLL	6	19	14,27	Timken	Deep Groove Ball Bearings
  36R4010	36	40	10	KOYO	Needle Roller Bearings
  61816	80	100	10	ISB	Deep Groove Ball Bearings
  6916-2RS	80	110	16	KOYO	Deep Groove Ball Bearings
  7336DB	180	380	75	NTN	Angular Contact Ball Bearings
  89318	90	155		CX	Thrust Roller Bearings
  FC35140	30	55	56	SNR	Tapered Roller Bearings
  HH221442/HH221410-B	98,425	190,5	57,531	Timken	Tapered Roller Bearings
  LME8UU	8	16	16,5	Samick	Linear Bearings
  NJ320	100	215	47	NTN	Cylindrical Roller Bearings
  NNCL4924 V	120	165	45	CX	Cylindrical Roller Bearings
  PCM 303440 M	30	34	40	SKF	Plain Bearings
  RNA0-30X40X26ZW	30,000	40,000	26,000	NTN	Needle Roller Bearings
  BJL25	25	62	24	RIV	SELF
  HA3128	140	180		SKF (Old No.)	ADAPTERS
  511/500				SKF	THRUST BALL BEARINGS
  293/750EM	750	1120		CONSOLIDATED	SPHERICAL ROLLER THRUST BEARINGS
  11/4x15/16x11/4	1.2500	1.3125	1.2500	CONSOLIDATED	JOURNAL ROLLER BEARING OUTER RACES
