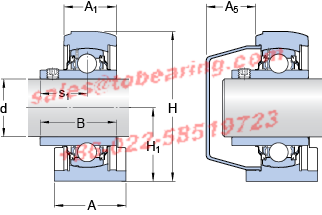

d - 31.75 mm

A - 43 mm

A₁ - 28 mm

B - 38.1 mm

H - 84 mm

H₁ - 42.9 mm

J - 76.2 mm

L - 101 mm

s₁ - 22.2 mm

Basic dynamic load rating - C - 19.5 kN

Basic static load rating - C₀ - 11.2 kN

Fatigue load limit - P_u - 0.475 kN

Limiting speed - 3800 r/min

Calculation factor - f₀ - 14

Weight - 0.5 kg

Size thread - G - M10

Thread length - G₁ - 12 mm

Hexagonal key size for grub screw - H - 3.175 mm

Recommended tightening torque for grub screw - 4 N·m

Housing - SYFWK 506 L

Bearing - YAR 206-104-2RF/VE495

End cover - ECL 206

• Model Number: SYFWK 1.1/4 ALTA
• Inner Diameter：31,75mm Outer Diameter：43mm Width：28mm
• Type：Bearing Units
• Update date：2025-04-18
• Application:plastic rolling,organic raw materials,diagnostic test paper,Cleaning equipment,top industry,Technical Equipment,root canal filling,security equipment,metallurgical mold,Special Equipment,Material handling equipment
• Similar models:ISO UCFL305 KOYO UCP209 NKE RASEY60-N KOYO UCFL205-16E FYH USP002S6 KOYO UCIP313 NKE RRTY30 SNR UKPAE205H NACHI UCFL214 KOYO NANF204-12
• BEARING POWER International Trading Co.,Ltd. specialize in SYFWK1.1/4ALTA products，there is large inventory of SKF SYFWK 1.1/4 ALTA . We has been built up long-term cooperation with SKF company, could make a bulk order of the SYFWK 1.1/4 ALTA Which SKF SYFWK1.1/4ALTA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
