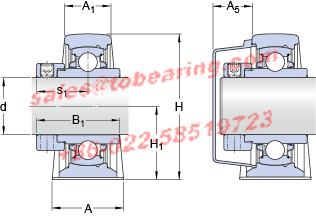

d - 50 mm

A - 54 mm

A₁ - 34 mm

A₅ - 29.5 mm

B₁ - 62.7 mm

H - 114 mm

H₁ - 57.2 mm

H₂ - 22 mm

J - 157 mm

J - max. - 165 mm

J - min. - 149 mm

L - 203 mm

H - 26 mm

N₁ - 18 mm

s₁ - 38.1 mm

J₆ - 187 mm

J₇ - 19 mm

N₄ - 4 mm

Basic dynamic load rating - C - 35.1 kN

Basic static load rating - C₀ - 23.2 kN

Fatigue load limit - P_u - 0.98 kN

Limiting speed - 800 r/min

Weight - 2.75 kg

Hexagonal key size for grub screw - H - 5 mm

Recommended tightening torque for grub screw - 16.5 N·m

• Model Number: SY 50 WDW
• Inner Diameter：50mm Outer Diameter：54mm Width：34mm
• Type：Bearing Units
• Update date：2025-12-16
• Application:Hairbrush device,Spectrum Products,plant determination,medical equipment,outdoor equipment,gas turbine,lifting equipment Hoisting hoist,filter paper products,ventilator anesthesia machine etc,power protection,Industrial
• Similar models:SKF FYJ50KF+H2310 KOYO UCTU315-500 SKF SYFWK50LTA NKE PCFT50 KOYO UCTH206-18-150 INA PCJTY50-N INA KGHK50-B-PP-AS SKF FYT50TF/VA201 INA RTUEY50 NKE RCJT50-N
• BEARING POWER International Trading Co.,Ltd. specialize in SY50WDW products，there is large inventory of SKF SY 50 WDW . We has been built up long-term cooperation with SKF company, could make a bulk order of the SY 50 WDW Which SKF SY50WDW is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
