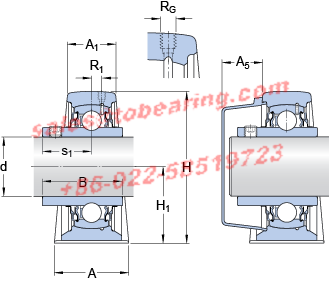

d - 40 mm

A - 48 mm

A₁ - 30 mm

A₅ - 23.5 mm

B - 49.2 mm

H - 99 mm

H₁ - 49.2 mm

H₂ - 19 mm

J - 135.5 mm

J - max. - 146 mm

J - min. - 125 mm

L - 175 mm

H - 24.5 mm

N₁ - 14 mm

s₁ - 30.2 mm

J₆ - 161 mm

J₇ - 17 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 3.5 mm

R_α - 45 °

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C₀ - 19 kN

Fatigue load limit - P_u - 0.8 kN

Limiting speed - 2800 r/min

Weight - 1.75 kg

Hexagonal key size for grub screw - H - 4 mm

Recommended tightening torque for grub screw - 6.5 N·m

• Model Number: SY 40 TR
• Inner Diameter：40mm Outer Diameter：48mm Width：30mm
• Type：Bearing Units
• Update date：2025-12-16
• Application:Perfusion device,hydraulic pressure gauge,chamfer,shaft milling machine,boring bar boring bar,Pneumatic Control Valves,reducer,Switch,fruit and vegetable processing,Safety protection,Control
• Similar models:INA PMEY40-N SKF FY40WF INA RCJTA40-N INA GLCTE40 NACHI UCTL208+WL400 FYH UCP313-40 SKF FYTB40WF KOYO UCPX13-40 INA PCCJ40 KOYO UCT213-40E
• BEARING POWER International Trading Co.,Ltd. specialize in SY40TR products，there is large inventory of SKF SY 40 TR . We has been built up long-term cooperation with SKF company, could make a bulk order of the SY 40 TR Which SKF SY40TR is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
