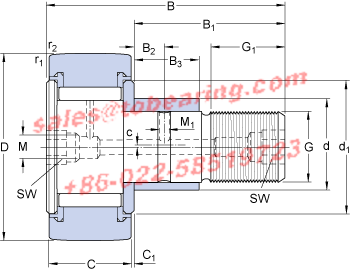

D - 72 mm

d - 28 mm

B - 80 mm

C - 29 mm

B₁ - 49.5 mm

B₂ - 11 mm

B₃ - 22 mm

C₁ - 0.8 mm

d₁ - 44 mm

G - M 24x1.5

G₁ - 25 mm

M - 8 mm

M₁ - 4 mm

SW - 14 mm

c - 1 mm

r_1,2 - min. - 1.1 mm

Basic dynamic load rating - C - 33 kN

Basic static load rating - C₀ - 80 kN

Fatigue load limit - P_u - 9.8 kN

Maximum dynamic radial loads - F_r - 118 kN

Maximum static radial loads - F_0r - 170 kN

Limiting speed - 1700 r/min

Mass support roller - 1.055 kg

Recommended tighthening torque - 220 N·m

Grease fitting - NIP A3x9.5

Hexagonal nut - M 24x1.5

Lubrication adapter - AP 14

• Model Number: KRVE 72 PPA
• Inner Diameter：28mm Outer Diameter：72mm Width：80mm
• Type：Cylindrical Roller Bearings
• Update date：2025-12-13
• Application:static control,mathematical instruments,municipal machinery,Low-voltage electrical equipment,Animal Tracking,medical equipment,Other Machine Tools,medical equipment,inorganic chemical,tapping machine,Control
• Similar models:CX NCF2972V ISB FCD72102370 ISO SL014972 SKF NNU4972B/SPW33 ISO NU2272 INA 722034710 ISO BK172514 CX NJ2272 CX NUP2072 ISO BK172518
• BEARING POWER International Trading Co.,Ltd. specialize in KRVE72PPA products，there is large inventory of SKF KRVE 72 PPA . We has been built up long-term cooperation with SKF company, could make a bulk order of the KRVE 72 PPA Which SKF KRVE72PPA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
