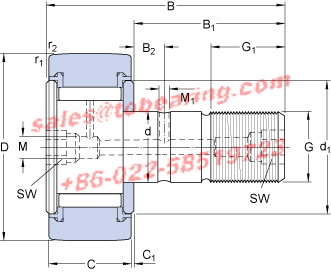

D - 40 mm

d - 18 mm

B - 58 mm

C - 20 mm

B₁ - 36.5 mm

B₂ - 8 mm

C₁ - 0.8 mm

d₁ - 31.5 mm

G - M 18x1.5

G₁ - 19 mm

M - 6 mm

M₁ - 3 mm

SW - 8 mm

r_1,2 - min. - 1 mm

Basic dynamic load rating - C - 14.2 kN

Basic static load rating - C₀ - 26.5 kN

Fatigue load limit - P_u - 3.1 kN

Maximum dynamic radial loads - F_r - 17 kN

Maximum static radial loads - F_0r - 24.5 kN

Limiting speed - 2200 r/min

Mass support roller - 0.247 kg

Recommended tighthening torque - 87 N·m

Grease fitting - NIP A2x7.5

Hexagonal nut - M 18x1.5

Lubrication adapter - AP 8

• Model Number: KRV 40 PPA
• Inner Diameter：18mm Outer Diameter：40mm Width：58mm
• Type：Cylindrical Roller Bearings
• Update date：2025-04-22
• Application:marine test,lifting tackle,packing equipment,impression material,special broaching machine,Insect Count,car instrument,water,filter paper products,medical equipment,lifting upgrade
• Similar models:NKE NCF1840-V NTN NN3940KC1NAP4 CX HK405014 NTN NU408 SKF NKX40 CX NN4024K NKE NUP240-E-M6 NTN 4R4052 ISO N408 NSK 544091/544118
• BEARING POWER International Trading Co.,Ltd. specialize in KRV40PPA products，there is large inventory of SKF KRV 40 PPA . We has been built up long-term cooperation with SKF company, could make a bulk order of the KRV 40 PPA Which SKF KRV40PPA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
