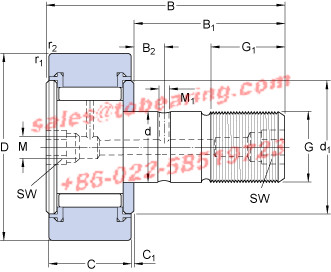

D - 30 mm

d - 12 mm

B - 40 mm

C - 14 mm

B₁ - 25 mm

B₂ - 6 mm

C₁ - 0.6 mm

d₁ - 23 mm

G - M 12x1.5

G₁ - 13 mm

M - 4 mm

M₁ - 3 mm

SW - 6 mm

r_1,2 - min. - 0.6 mm

Basic dynamic load rating - C - 9 kN

Basic static load rating - C₀ - 14.6 kN

Fatigue load limit - P_u - 1.7 kN

Maximum dynamic radial loads - F_r - 11 kN

Maximum static radial loads - F_0r - 15.6 kN

Limiting speed - 3200 r/min

Mass support roller - 0.091 kg

Recommended tighthening torque - 22 N·m

Grease fitting - NIP A1x4.5

Hexagonal nut - M 12x1.5

• Model Number: KRV 30 PPXA
• Inner Diameter：12mm Outer Diameter：30mm Width：40mm
• Type：Cylindrical Roller Bearings
• Update date：2025-12-09
• Application:chemical instruments,Broadcasting System,Handling machinery and various industrial machinery,manual Tools,clean stationery,aerial work equipment,molding machine,Pneumatic Control Elements,paper processing machine,Cutting Machine,Cylinder Pneumatic Treatment Element
• Similar models:CYSD NJ2304E ISO NJ330 NTN 4R3029 CRAFT N230 KOYO NU2304R NKE NUP2306-E-MPA NKE NCF3084-V SIGMA NU304 Timken 500RN30 NKE NJ309-E-MPA+HJ309-E
• BEARING POWER International Trading Co.,Ltd. specialize in KRV30PPXA products，there is large inventory of SKF KRV 30 PPXA . We has been built up long-term cooperation with SKF company, could make a bulk order of the KRV 30 PPXA Which SKF KRV30PPXA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
