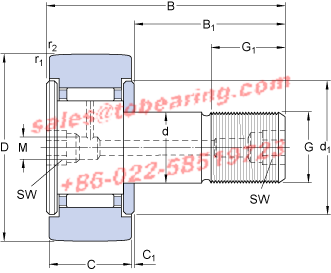

D - 22 mm

d - 10 mm

B - 36 mm

C - 12 mm

B₁ - 23 mm

C₁ - 0.6 mm

d₁ - 17.5 mm

G - M 10x1

G₁ - 12 mm

M - 4 mm

SW - 5 mm

r_1,2 - min. - 0.3 mm

Basic dynamic load rating - C - 4.4 kN

Basic static load rating - C₀ - 5 kN

Fatigue load limit - P_u - 0.56 kN

Maximum dynamic radial loads - F_r - 4.2 kN

Maximum static radial loads - F_0r - 6 kN

Limiting speed - 5300 r/min

Mass support roller - 0.045 kg

Recommended tighthening torque - 15 N·m

Grease fitting - NIP A1x4.5

Hexagonal nut - M 10x1

• Model Number: KR 22 B
• Inner Diameter：10mm Outer Diameter：22mm Width：36mm
• Type：Cylindrical Roller Bearings
• Update date：2025-12-10
• Application:Optical Instruments,impression material,hardware,Cylinder Type,Cylinder Micro,trolley,turret industry,Film machine,rolling machine,medical equipment,Infrared Technology
• Similar models:ISO NU2212 NKE NU2210-E-TVP3 SKF NU228ECM/C3VL2071 NTN NU2210 FAG NUP2244-EX-M1 KOYO NUP2224R INA NN3022-AS-K-M-SP NSK NU1022 ISB NJ2211 KOYO NJ220R
• BEARING POWER International Trading Co.,Ltd. specialize in KR22B products，there is large inventory of SKF KR 22 B . We has been built up long-term cooperation with SKF company, could make a bulk order of the KR 22 B Which SKF KR22B is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
