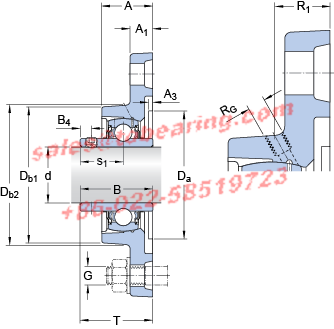

d - 40 mm

A - 36 mm

A₁ - 16 mm

A₃ - H14 - 3.2 mm

B - 49.2 mm

B₄ - 8 mm

D_a - H11 - 88.9 mm

D_b1 - 97 mm

D_b2 - 100 mm

J - 144 mm

H - 175 mm

L - 100 mm

H - 16 mm

s₁ - 30.2 mm

T - 51.2 mm

J₆ - 116 mm

J₇ - 16 mm

N₄ - 2 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 21.5 mm

R_α - 45 °

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C₀ - 19 kN

Fatigue load limit - P_u - 0.8 kN

Limiting speed - 4800 r/min

Mass bearing unit - 1.5 kg

Thread - G₂ - M8x1

Hexagonal key size for grub screw - H - 4 mm

Recommended tightening torque for grub screw - 6.5 N·m

• Model Number: FYTJ 40 TF
• Inner Diameter：40mm Outer Diameter：36mm Width：16mm
• Type：Bearing Units
• Update date：2025-12-11
• Application:hydraulic connector,construction machinery and equipment,hydraulic actuator,teaching equipment,medical equipment,Optical Instruments,plastic molding,food safety,rehabilitation training equipment,industrial supplies,Microwave Equipment
• Similar models:INA PHE40 NKE PCJ40-N SKF SYFWK40LTA NKE RSHEY40-N NKE RMEY40-N KOYO UCP313-40 NKE PSHEY40-N NKE PCFT40 NKE RATY40 SKF PF40TR
• BEARING POWER International Trading Co.,Ltd. specialize in FYTJ40TF products，there is large inventory of SKF FYTJ 40 TF . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYTJ 40 TF Which SKF FYTJ40TF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
