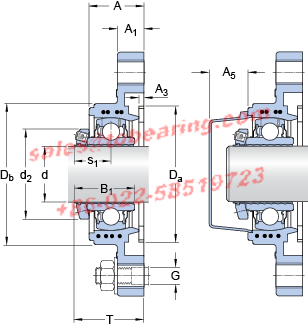

d - 25 mm

d₂ - 41.7 mm

A - 30 mm

A₁ - 15 mm

A₃ - H14 - 3.2 mm

A₅ - 18 mm

B₁ - 33.2 mm

D_a - H11 - 63.5 mm

D_b - 65 mm

J - 99 mm

H - 124 mm

L - 70 mm

H - 12.3 mm

s₁ - 21.2 mm

T - 40.2 mm

Basic dynamic load rating - C - 14 kN

Basic static load rating - C₀ - 7.8 kN

Fatigue load limit - P_u - 0.335 kN

Limiting speed - 8500 r/min

Mass bearing unit - 0.28 kg

Thread - G₂ - M5

Hexagonal key size for grub screw - H - 2.5 mm

Recommended tightening torque for grub screw - 4.2 N·m

• Model Number: FYTBK 25 LEF
• Inner Diameter：25mm Outer Diameter：41,7mm Width：30mm
• Type：Bearing Units
• Update date：2023-10-08
• Application:machining,plastic molding,internal combustion engine,chemical instruments,electronic materials,switch,light therapy instrument,tapered grinder,Reflective Materials Industrial fabrics,Antenna Potentials,outdoor equipment
• Similar models:SKF FYTBK25TF NKE PBY25 INA KGBS25-PP-AS KOYO UCFL208-25 INA PASE40-N-FA125 SKF SYJ25KF+SYJ505 NKE PME25-N AST UCF208-25E SKF SYFJ25TF NKE PSHEY25-N
• BEARING POWER International Trading Co.,Ltd. specialize in FYTBK25LEF products，there is large inventory of SKF FYTBK 25 LEF . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYTBK 25 LEF Which SKF FYTBK25LEF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
