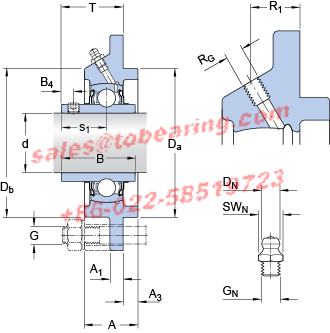

d - 20 mm

A - 25.5 mm

A₁ - 7 mm

A₃ - 5 mm

B - 31 mm

B₄ - 4.5 mm

D_a - h8 - 62 mm

D_b - 61 mm

J - 78 mm

J₁ - 55.2 mm

L - 100 mm

H - 12 mm

s₁ - 18.3 mm

T - 28.3 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 14.5 mm

Basic dynamic load rating - C - 12.7 kN

Basic static load rating - C₀ - 6.6 kN

Fatigue load limit - P_u - 0.28 kN

Limiting speed with shaft tolerance h6 - 8500 r/min

Weight - 0.67 kg

Thread - G₂ - M6x0.75

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

• Model Number: FYC 20 TF
• Inner Diameter：20mm Outer Diameter：25,5mm Width：7mm
• Type：Bearing Units
• Update date：2025-12-16
• Application:medical equipment,Display Devices,industrial fans,Forklift industry,metering pump,wall industry,Vertical pull,surgical instruments,test laboratory equipment and accessories,sewage pump,coal
• Similar models:SNR UCT203 KOYO BLF207-20 KOYO UCHA204-12 SNR USFC209 FYH UCFA207-22 KOYO NANFL208-24 KOYO UCFL208E SKF TUJ20TF FYH UCTU208-900 AST ER204
• BEARING POWER International Trading Co.,Ltd. specialize in FYC20TF products，there is large inventory of SKF FYC 20 TF . We has been built up long-term cooperation with SKF company, could make a bulk order of the FYC 20 TF Which SKF FYC20TF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
