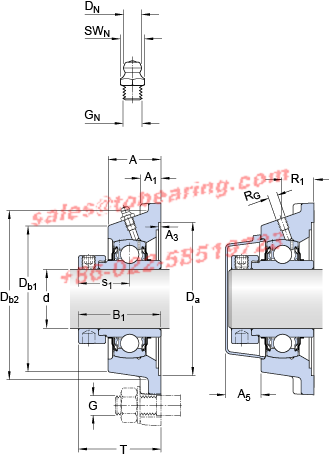

d - 60 mm

A - 52 mm

A₁ - 17 mm

A₃ - H14 - 3.2 mm

A₅ - 35.5 mm

B₁ - 77.8 mm

D_a - H11 - 161.9 mm

D_b1 - 130 mm

D_b2 - 143 mm

J - 143 mm

L - 175 mm

H - 18 mm

s₁ - 46.8 mm

T - 80.8 mm

J₆ - 161 mm

J₇ - 49.5 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 34.5 mm

Basic dynamic load rating - C - 52.7 kN

Basic static load rating - C₀ - 36 kN

Fatigue load limit - P_u - 1.5 kN

Limiting speed - 3400 r/min

Mass bearing unit - 4.1 kg

Thread - G₂ - M10x1

Hexagonal key size for grub screw - H - 5 mm

Recommended tightening torque for grub screw - 16.5 N·m

• Model Number: FY 60 WF
• Inner Diameter：60mm Outer Diameter：52mm Width：17mm
• Type：Bearing Units
• Update date：2025-04-22
• Application:Forming mold,surgical instruments,milling head plug,pneumatic Pump,Oral Equipment,engineering machine,Automation,hydraulic cylinder,chemical,Doppler,mechanical annex
• Similar models:SKF FYJ60KF+HS2312 NACHI UCTU317+WU600 SKF SYJ60KF+SYJ512 SKF FY60TF/VA201 KOYO UCTU209-600 INA RME60-N SKF SYNT60FTF INA RMEY60-N SKF SY60TR NKE RSHE60-N
• BEARING POWER International Trading Co.,Ltd. specialize in FY60WF products，there is large inventory of SKF FY 60 WF . We has been built up long-term cooperation with SKF company, could make a bulk order of the FY 60 WF Which SKF FY60WF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
