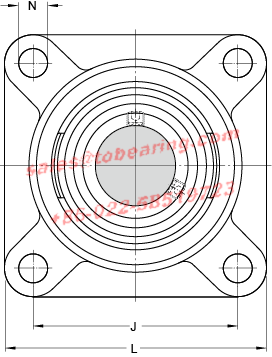

d - 55 mm

A₁ - 47.5 mm

A₂ - 16 mm

J - 130 mm

L - 162 mm

T - 64.4 mm

H - 19 mm

B - 55.6 mm

s₁ - 33.4 mm

Basic dynamic load rating - C - 43.6 kN

Basic static load rating - C₀ - 29 kN

Limiting speed - 50 r/min

Limiting temperature - T - 250 °C

Mass bearing unit - 3.59 kg

Grub (set) screw - G₂ - M10x1

Hexagonal key size for grub screw - H - 5 mm

Recommended tightening torque for grub screw - 16.5 N·m

Bearing -

• Model Number: FY 55 TF/VA201
• Inner Diameter：47,5mm Outer Diameter：55mm Width：16mm
• Type：Bearing Units
• Update date：2025-04-21
• Application:Garment Accessories,Broadcasting System,rolling machine,stamping die,boring bar boring bar,van,water protection,Pneumatic Control Elements,printing machinery,textile machinery,orthodontic material
• Similar models:SKF FYNT55L SKF SYJ55KF+H2311 FYH UCTX17-55E SKF SYJ55KF+HE2311B NKE RCJT55 INA TCJT55 INA RCJT55 NKE PTUE55 SKF FYJ55KF+H2311 SKF FY55FM
• BEARING POWER International Trading Co.,Ltd. specialize in FY55TF/VA201 products，there is large inventory of SKF FY 55 TF/VA201 . We has been built up long-term cooperation with SKF company, could make a bulk order of the FY 55 TF/VA201 Which SKF FY55TF/VA201 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.

• Model No.	Inner Diameter	Outer Diameter	Width	Brand	Type
  1639-2RS	20,638	50,8	14,288	CYSD	Deep Groove Ball Bearings
  23152MW33	260	440	144	CRAFT	Spherical Roller Bearings
  3188/3129	31.75	76,2	30,162	Timken	Tapered Roller Bearings
  53BIH247	136,525	190,5	25,4	Timken	Deep Groove Ball Bearings
  6014-RS	70	110	20	CYSD	Deep Groove Ball Bearings
  6938-RZ	190	260	33	CYSD	Deep Groove Ball Bearings
  713650550				FAG	Wheel Bearings
  7209CG1DUJ74	45	85	38	SNR	Angular Contact Ball Bearings
  HB95 /S 7CE3	95	130	18	SNFA	Angular Contact Ball Bearings
  KFC080	203,2	241,3	19,05	KOYO	Deep Groove Ball Bearings
  NJ248	240	440	72	ISO	Cylindrical Roller Bearings
  NU2338-E-MPA	190	400	132	NKE	Cylindrical Roller Bearings
  NUP1006	30	55	13	KOYO	Cylindrical Roller Bearings
  TRI 9012550	90	125	50,5	IKO	Needle Roller Bearings
  RSTO20DZ	47		15.8	FAG	NEEDLE BEARINGS
  NU2234E	170	310	86	SKF	CYLINDRICAL ROLLER BEARINGS
  7416BMG	80	200	48	NSK	ANGULAR CONTACT BALL BEARINGS
  6311.2Z	55	120	29	SKF	DEEP GROOVE BALL BEARINGS
  AH-2332x150	160	150		CONSOLIDATED	WITHDRAWAL SLEEVES
  SY-200	2.0000			CONSOLIDATED	PILLOW BLOCKS
