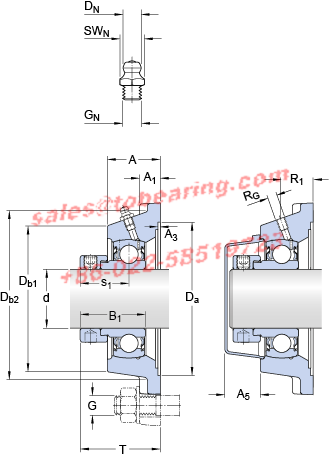

d - 35 mm

A - 34.5 mm

A₁ - 13 mm

A₃ - H14 - 3.2 mm

A₅ - 22 mm

B₁ - 38.9 mm

D_a - H11 - 106.4 mm

D_b1 - 87 mm

D_b2 - 95 mm

J - 92 mm

L - 118 mm

H - 14 mm

s₁ - 29.4 mm

T - 50.4 mm

J₆ - 106 mm

J₇ - 29 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 22.5 mm

Basic dynamic load rating - C - 25.5 kN

Basic static load rating - C₀ - 15.3 kN

Fatigue load limit - P_u - 0.655 kN

Limiting speed - 5300 r/min

Mass bearing unit - 1.3 kg

Thread - G₂ - M10x1

Hexagonal key size for grub screw - H - 5 mm

Recommended tightening torque for grub screw - 16.5 N·m

• Model Number: FY 35 FM
• Inner Diameter：35mm Outer Diameter：34,5mm Width：13mm
• Type：Bearing Units
• Update date：2025-04-22
• Application:machine lathe,switch,food sterilization,power tools,Performance test,vertical sawing machine,Oral Image,molding machine,medical equipment,cooling system,Blood coagulation reagent
• Similar models:INA TTUE35 SKF PFT35RM FYH UCF211-35 SKF SYFWK35LTA KOYO NAP211-35 SKF P80R-35WF INA TME35-N INA TCJT35-N KOYO UCFC211-35 INA RATR35
• BEARING POWER International Trading Co.,Ltd. specialize in FY35FM products，there is large inventory of SKF FY 35 FM . We has been built up long-term cooperation with SKF company, could make a bulk order of the FY 35 FM Which SKF FY35FM is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
