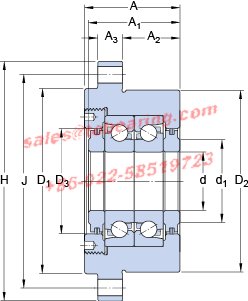

d - 50 mm

H - 165 mm

A - 66 mm

A₁ - 64.26 mm

A₂ - 43.5 mm

A₃ - 17 mm

d₁ - 66 mm

D₁ - 128 mm

D₂ - 124 mm

D₃ - 76 mm

Basic dynamic load rating - C - 46.5 kN

Basic static load rating - C₀ - 146 kN

Fatigue load limit - P_u - 5.4 kN

Limiting speed, Preload class A - 4800 r/min

Limiting speed for oil lubrication - 2400 mm/min

Preload class A - 4100 N

Preload class B - 8200 N

Frictional moment, Preload class A - 0.31 N·m

Frictional moment, Preload class B - 0.68 N·m

Static Axial rigidity, Preload class A - 1410 N/micron

Static Axial rigidity, Preload class B - 1800 N/micron

Weight - 5.7 kg

• Model Number: FBSA 210/DB
• Inner Diameter：50mm Outer Diameter：165mm Width：66mm
• Type：Thrust Ball Bearings
• Update date：2025-04-18
• Application:Spectral Products,expectoration machine,survey accessories,position switch,Handling machinery and various industrial machinery,marine test,security equipment,food sterilization,plastic rolling,plant determination,chuck industry
• Similar models:KOYO 53210 SKF 52210 NACHI 52210 SKF NUP2210ECML SKF NUP2210ECP SKF 53210+U210 KOYO 53210U NSK 51210 SKF NU2210ECJ SKF BSA210CG
• BEARING POWER International Trading Co.,Ltd. specialize in FBSA210/DB products，there is large inventory of SKF FBSA 210/DB . We has been built up long-term cooperation with SKF company, could make a bulk order of the FBSA 210/DB Which SKF FBSA210/DB is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
