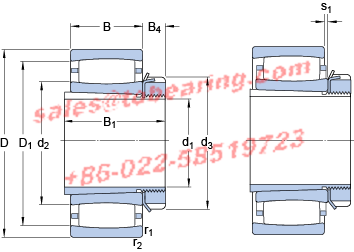

d₁ - 115 mm

D - 230 mm

B₁ - 92 mm

d₂ - - 152 mm

d₃ - 155 mm

D₁ - - 199 mm

B - 64 mm

B₄ - 23 mm

s₁ - 9.6 mm

r_1,2 - min. - 3 mm

d_a - max. - 171 mm

d_b - min. - 138 mm

D_a - min. - 185 mm

D_a - max. - 216 mm

B_a - min. - 8 mm

C_a - min. - 1.1 mm

r_a - max. - 2.5 mm

Basic dynamic load rating - C - 735 kN

Basic static load rating - C₀ - 930 kN

Fatigue load limit - P_u - 91.5 kN

Reference speed - 2800 r/min

Limiting speed - 3800 r/min

Factor - k₁ - 0.113

Factor - k₂ - 0.101

Mass bearing and adapter sleeve - 14 kg

• Model Number: C 2226 K + H 3126 L
• Inner Diameter：230mm Outer Diameter：115mm Width：92mm
• Type：Cylindrical Roller Bearings
• Update date：2025-12-13
• Application:power tools,construction machinery and equipment,Oral Image,small diesel generators,diagnostic test paper,metal mold,van,hydraulic cylinder,pump accessories,container finishing,lifting chain
• Similar models:SKF C2226 ISO NUP2226 AST NUP2226 INA RSL182226-A CX N2226E CX NF2226E CX NU2226E NKE NUP2226-E-MA6 NACHI 22264EK NTN NUP2226
• BEARING POWER International Trading Co.,Ltd. specialize in C2226K+H3126L products，there is large inventory of SKF C 2226 K + H 3126 L . We has been built up long-term cooperation with SKF company, could make a bulk order of the C 2226 K + H 3126 L Which SKF C2226K+H3126L is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
