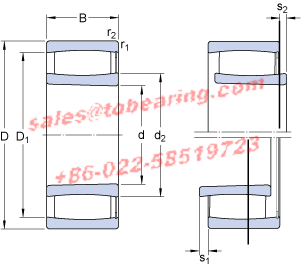

d - 70 mm

D - 125 mm

B - 31 mm

d₂ - - 83.7 mm

D₁ - - 111 mm

s₁ - 9.6 mm

s₂ - 5.3 mm

r_1,2 - min. - 1.5 mm

d_a - min. - 75.6 mm

d_a - max. - 102 mm

D_a - max. - 116 mm

r_a - max. - 1.5 mm

Basic dynamic load rating - C - 212 kN

Basic static load rating - C₀ - 228 kN

Fatigue load limit - P_u - 26.5 kN

Limiting speed - 2400 r/min

Factor - k₁ - 0.098

Factor - k₂ - 0.127

Mass bearing - 1.55 kg

• Model Number: C 2214 KV
• Inner Diameter：125mm Outer Diameter：70mm Width：31mm
• Type：Cylindrical Roller Bearings
• Update date：2025-04-22
• Application:tray industry,marine analysis and testing equipment,non-ferrous metal alloy,mechanical annex,car and accessories,ultra-quiet generators,Laser Measurements,mathematical instruments,spreader series,Leather Products,hardware
• Similar models:FBJ NJ2214 ISO SL182214 SKF C2214KTN9 KOYO NJ2214R NSK HH221449/HH221416 CYSD NUP2214E ISB NU2214 NKE NJ2214-E-MA6+HJ2214-E NACHI NJ2214 SKF C2214KV
• BEARING POWER International Trading Co.,Ltd. specialize in C2214KV products，there is large inventory of SKF C 2214 KV . We has been built up long-term cooperation with SKF company, could make a bulk order of the C 2214 KV Which SKF C2214KV is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
