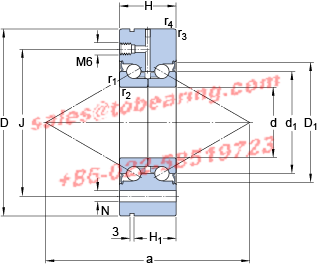

d - 30 mm

D - 80 mm

H - 28 mm

d₁ - 45.5 mm

D₁ - 54 mm

H₁ - 19 mm

r_1,2 - min. - 0.3 mm

r_3,4 - min. - 0.6 mm

a - 93 mm

J - 63 mm

H - 6.8 mm

d_a - min. - 40 mm

D_a - max. - 54 mm

r_a - max. - 0.6 mm

Basic dynamic load rating - C - 29.1 kN

Basic static load rating - C₀ - 64 kN

Fatigue load limit - P_u - 2.4 kN

Limiting speed - 2600 r/min

Preload - 2170 N

Frictional moment - 0.5 N·m

Static Axial rigidity - 870 N/micron

Mass bearing - 0.78 kg

Required attachment bolt size - M6

Number of attachment bolts - 12

• Model Number: BEAM 030080-2RS/PE
• Inner Diameter：30mm Outer Diameter：80mm Width：28mm
• Type：Thrust Ball Bearings
• Update date：2025-12-11
• Application:Antenna Industry,tapered grinder,rock drilling machinery,atomizer class,pump industry,enzyme,pump,air purification,Medium and large motor,Equipment,Microwave Equipment
• Similar models:SKF BEAM030080-2RS/PE SKF BEAM030080-2RZ SKF BEAM030080-2RS
• BEARING POWER International Trading Co.,Ltd. specialize in BEAM030080-2RS/PE products，there is large inventory of SKF BEAM 030080-2RS/PE . We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAM 030080-2RS/PE Which SKF BEAM030080-2RS/PE is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
