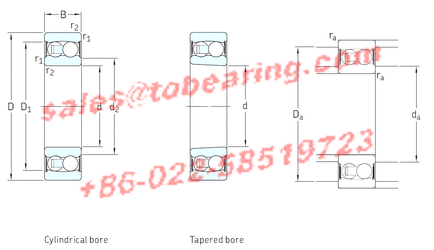

d - 70 mm

D - 125 mm

B - 31 mm

C - 31 mm

d2 - 81,4 mm

r1 min. - 1,5 mm

r2 min. - 1,5 mm

D1 - 109 mm

da min. - 79 mm

da max - 81 mm

Da max. - 116 mm

ra max. - 1,5 mm

Weight - 1,45 Kg

Basic dynamic load rating (C) - 35,8 kN

Basic static load rating (C0) - 14,6 kN

Fatigue load limit (Pu) - 0,75

Limiting speed - 3400 r/min

Calculation factor (e) - 0,18

Calculation factor (kr) - 0,045

Calculation factor (Y0) - 3,6

Calculation factor (Y1) - 3,5

Calculation factor (Y2) - 5,4

• Model Number: 2214E-2RS1TN9
• Inner Diameter：70mm Outer Diameter：125mm Width：31mm
• Type：Self-Aligning Ball Bearings
• Update date：2025-12-11
• Application:lathe,coal,Gas turbine,Power equipment,machine lathe,Low-voltage electrical equipment,surgical instruments,office outdoor camping equipment,clean stationery,Vertical machining,sucker industry
• Similar models:AST 2214 ISO 2214 SNR 2214 FAG 2214-2RS-TVH CX 2214-2RS ISB 2214 SKF 2214 NKE 2214 ISB 2214-2RSTN9 ISO 2214K
• BEARING POWER International Trading Co.,Ltd. specialize in 2214E-2RS1TN9 products，there is large inventory of SKF 2214E-2RS1TN9 . We has been built up long-term cooperation with SKF company, could make a bulk order of the 2214E-2RS1TN9 Which SKF 2214E-2RS1TN9 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
