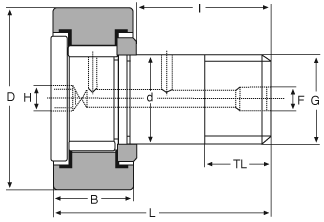

Dimensions (inch) | d | 1.0000 | Cylindrical O.D. CRHSB |
F | .1875 | ||
D | 1.8750 | ||
B | 1.0000 | ||
L | 2.7812 | ||
I | 1.7500 | ||
TL | .8750 | ||
G | 1-14 | ||
H | .3125 | ||
Approx. Wgt. lbs | 1.389 | ||
Interchange | IKO | CRH 30 VBUU | |
McGill | CFH-1 7/8 -SB | ||
RBC | H-60-LW | ||
Smith | HR-1 7/8 -XB | ||
Torrington | CRHSB-30 | ||
* Load ratings can vary between manufacturers. 1) Sizes CRHSB(C)-8-1 and CRHSB(C)-10-1 cannot be relubricated. Sizes CRHSB(C)-12 through CRHSB(C)-112 have relubrication holes at thread end. 2) All sealed Cam Followers are prelubricated. 3) All sealed Cam Followers have a black oxide finish on all exposed surfaces. |
Model No. | Inner Diameter | Outer Diameter | Width | Brand | Type |
160RN02 | 160 | 267 | Timken | Cylindrical Roller Bearings | |
---|---|---|---|---|---|
184120/184199H | 120 | 199 | 108 | Gamet | Tapered Roller Bearings |
23226AXK | 130 | 230 | 80 | NACHI | Cylindrical Roller Bearings |
239/1250 KCW33+H39/1250 | 1250 | 1630 | 280 | ISO | Spherical Roller Bearings |
32968-N11CA-VA240-300 | 340 | 460 | 152 | FAG | Tapered Roller Bearings |
6034Z | 170,000 | 260,000 | 42,000 | NTN | Deep Groove Ball Bearings |
6911 | 55 | 80 | 13 | NTN | Deep Groove Ball Bearings |
70TP132 | 177,8 | 355,6 | 76,2 | Timken | Thrust Roller Bearings |
GEWZ101ES-2RS | 101,6 | 158,75 | 152,4 | LS | Plain Bearings |
HCB7224-E-T-P4S | 120 | 215 | 40 | FAG | Angular Contact Ball Bearings |
NJ313 EMA | 65 | 140 | 33 | AST | Cylindrical Roller Bearings |
NUP218E | 90 | 160 | 30 | CYSD | Cylindrical Roller Bearings |
R140.44 | SNR | Wheel Bearings | |||
N224E | 120 | 215 | 40 | FAG | CYLINDRICAL ROLLER BEARINGS |
NUP322E | 110 | 240 | 50 | SKF | CYLINDRICAL ROLLER BEARINGS |
FPXB708 | 7.5000 | 8.1250 | .3125 | SKF | FOUR POINT ANGULAR CONTACT BALL BEARINGS |
RNA192716 | 27 | 16 | SKF (Old No.) | NEEDLE BEARINGS | |
638/5ZZ | 5 | 11 | 5 | SKF | DEEP GROOVE BALL BEARINGS |
K-20x24x13 | 20 | 24 | 13 | CONSOLIDATED | NEEDLE BEARINGS |
KA-25CPO-2RS | 2.5000 | 3.0000 | .2500 | CONSOLIDATED | DEEP GROOVE BALL BEARINGS |
