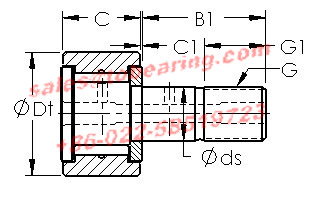

(dimensions in inches)
Bearing Type - Full Complement
Dynamic Load Rating (Cr) - 13,500
Static Load Rating (Cor) - 28,000
Max Speed (Grease) (X1000 RPM) - 1,600
Tire Outer Dia. (Dt) - 3.000
Stud Dia. (ds) - 1.250
Tire Width (C) - 1.750
Tire Washer Width (C1) - 0.031
Total Length (B) - 4.280
Stud Length (B1) - 2.500
Threads (G) - 1-1/4-12 UNF
Thread Length (G1) - 1.25
Weight (g) - 1,870.00
Material - Stud and Roller head: Hardened carbon steel alloy, Needle rollers - 52100 Chrome steel or equivalent
Standard finish is black oxide.
The stud has a screwdriver slot or hexagonal hole for mounting.
Some sizes are available with crowned outer race tires.
Some sizes are available with integral seals.
The load rating is based on a track hardness of HRc40 minimum.
The stud has an axially drilled hole for lubrication.
- Model Number: CF48
- Inner Diameter：mm Outer Diameter：mm Width：mm
- Type：Needle Roller Bearings
- Update date：2025-04-19
- Application:Individual Wire,climb ladder,engineering machinery,Textile Industry Accessories and Accessories,Insect Count,medical equipment,expectoration machine,chemical instruments,car shock absorber,generator,switch
- Similar models:JNS NA4824 NTN MR9612048 NBS K43x48x27 KOYO NA4828 IKO NA4828 NTN KJ43X48X29.8 IKO KT404825 NTN K40×48×25 NTN RNA4864 IKO GTR486230
- BEARING POWER International Trading Co.,Ltd. specialize in CF48 products，there is large inventory of AST CF48 . We has been built up long-term cooperation with AST company, could make a bulk order of the CF48 Which AST CF48 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
-
